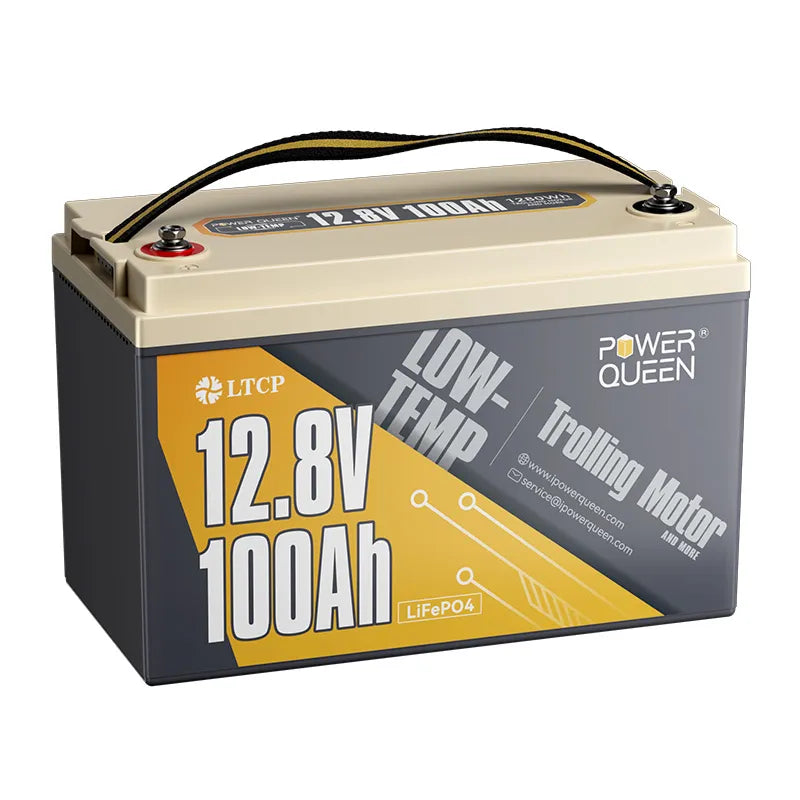

Name: Power Queen Lifepo4 12V 100Ah low temperature electric motor battery
Brand: PQ-DE
SKU: P12V100-100-LTP-4-A100-DE
Price: 208.99 EUR
Availability: InStock

Power Queen Lifepo4 12V 100Ah low temperature electric motor battery

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

12,8V 100Ah Niedrigtemp LiFePO4-Akku, Trollingmotor Batterie

Power Queen Lifepo4 12V 100Ah low temperature electric motor battery

10

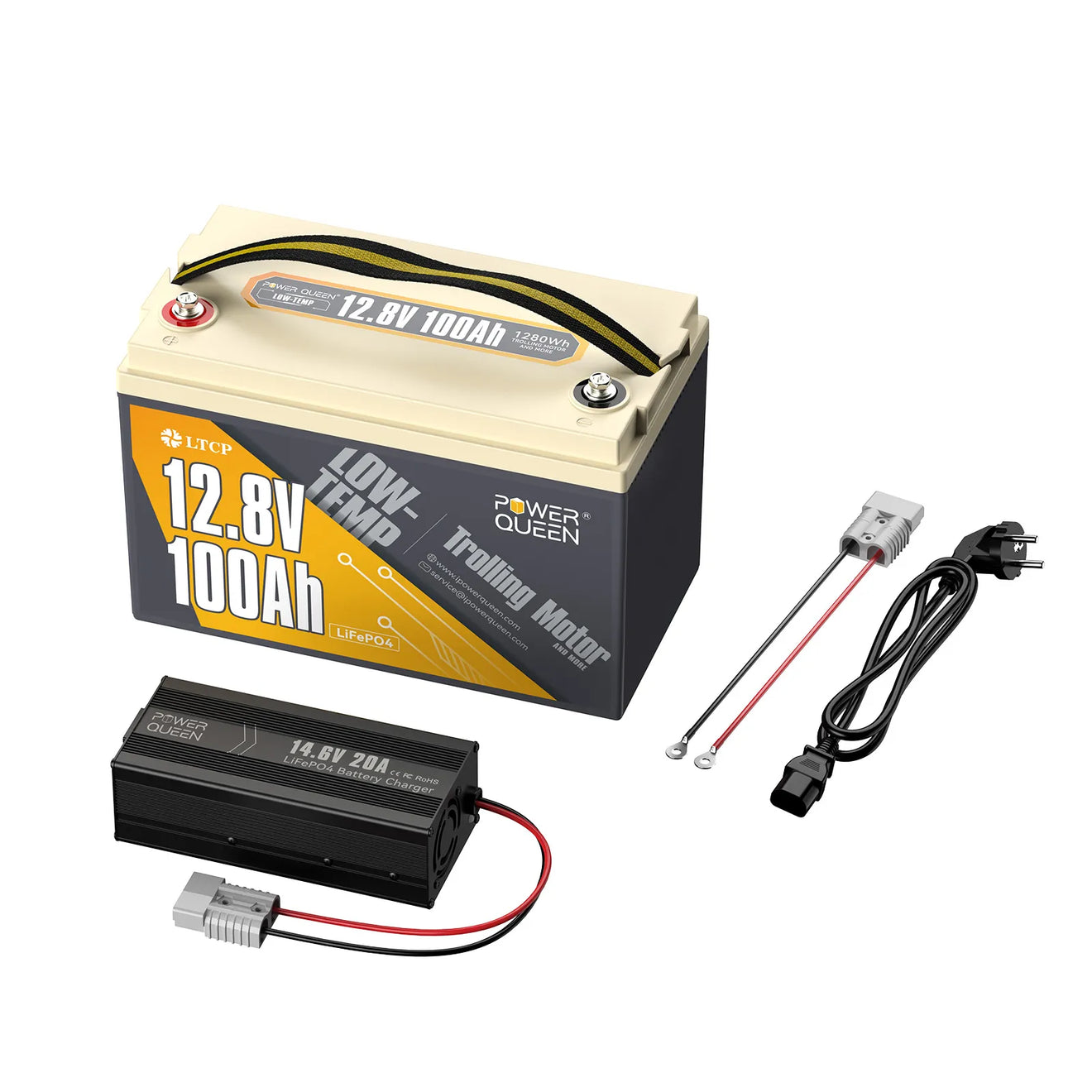

12,8V 100Ah Niedrigtemp LiFePO4-Akku, Trollingmotor Batterie mit 14,6V 20A Ladegerät

+10

Discount -30%

Product shape

Automatic shutdown at low temperatures for safe charging and discharging.

Protection against moisture, dust and salt spray ensures reliability in cold and harsh environments.

The new BMS can handle currents of 500 A per second, allowing your trolling motor to develop maximum thrust.

Integrated 10 kW TVS and excellent shock resistance ensure trouble-free operation in strong winds and waves.

The overcurrent protection's automatic recovery feature ensures your trolling motor is supplied with safe, uninterrupted power while on the water.

Number Free collection in Our business (e) 1 piece (saving € 91)

1 piece (saving € 91)

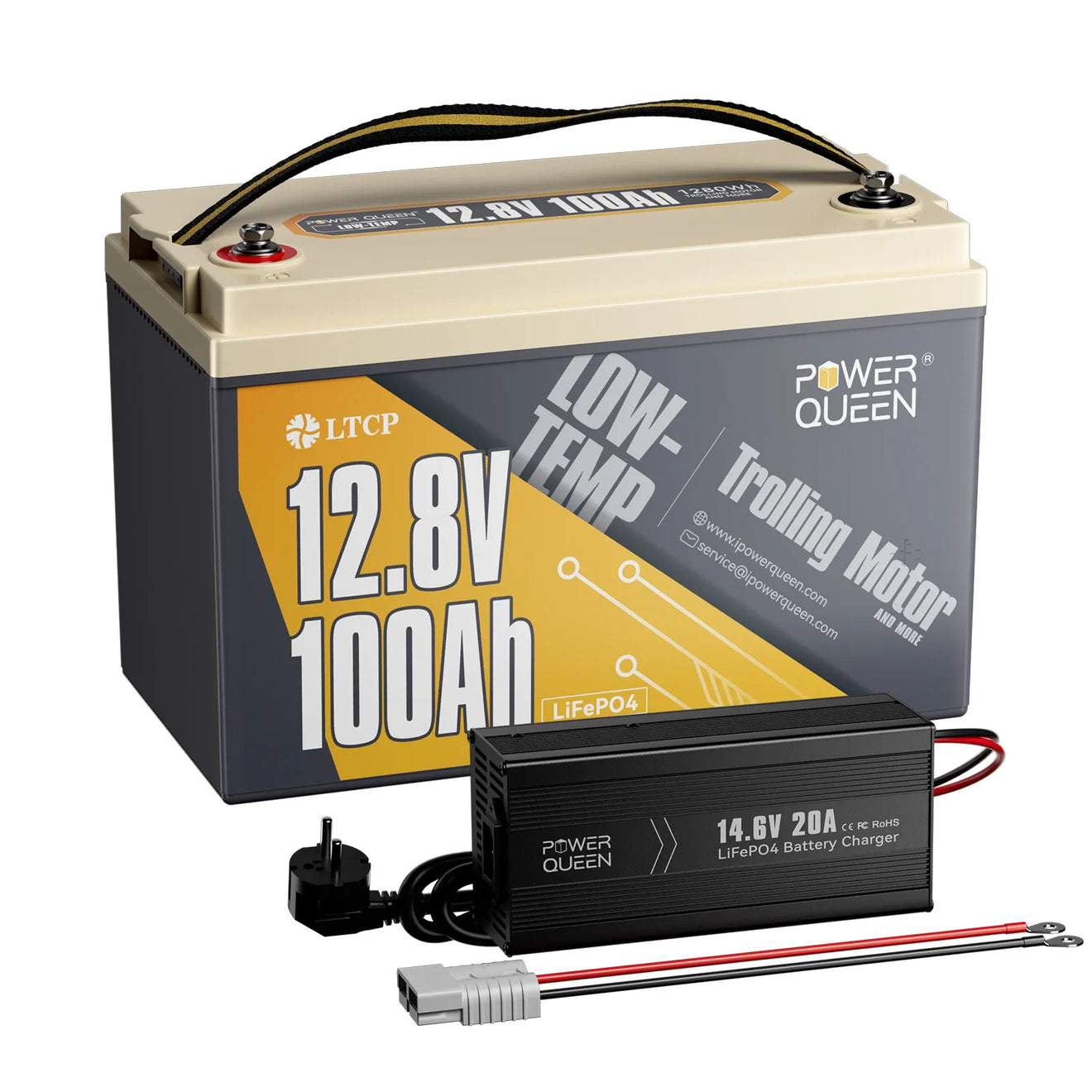

1 piece+14.6V 20A charger

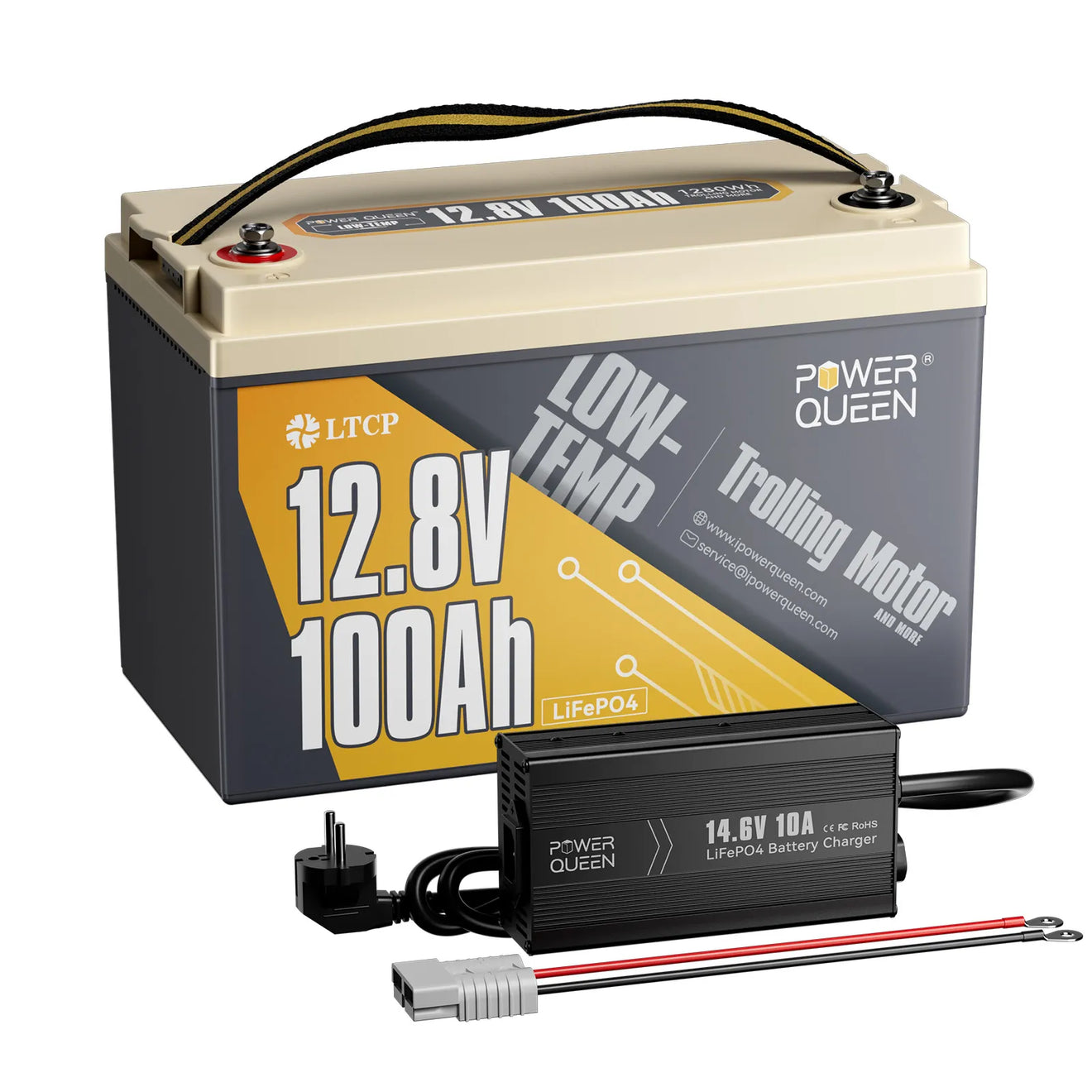

1 piece+14.6V 10A charger

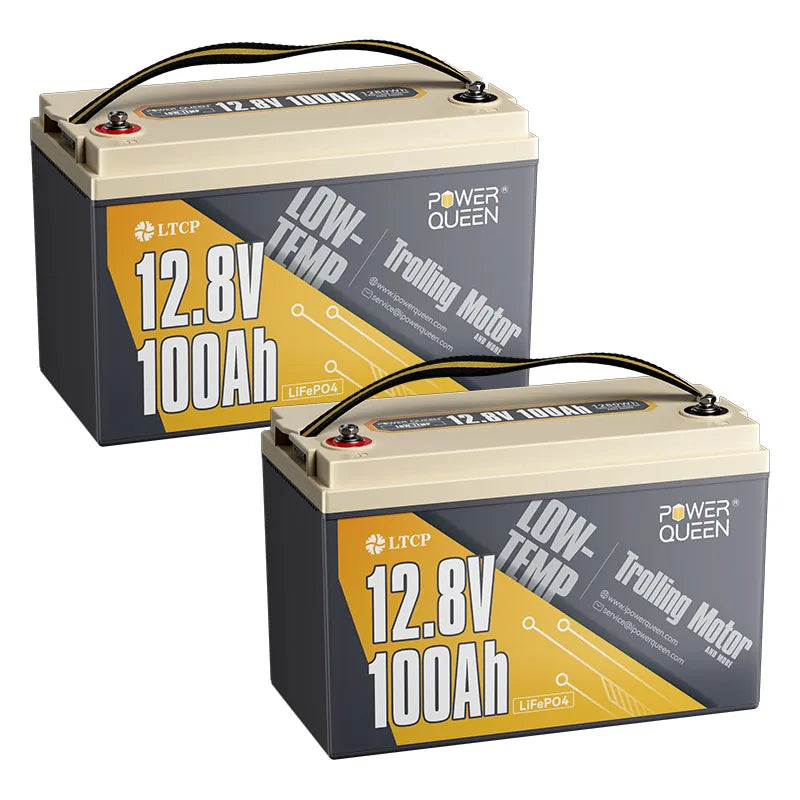

2 pieces (€ 206.90 / piece)

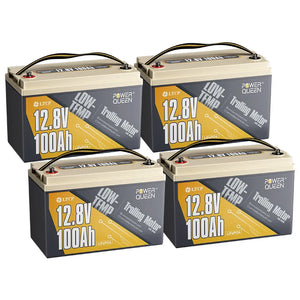

4 pieces (€ 204.81 / piece)

1 piece (0% VAT. DE/AT)

1 piece (0% VAT. UA)

30 in stock

€208,99 €299,99

0 % MwSt. bei Lieferungen nach Deutschland und Österreich

You hereby confirm that you meet the requirements for sales tax -free delivery in accordance with Section 12 (3) of Germany or 28 Paragraph 62 UStG. Erfahren Sie mehr.

Battery specifications

Cell type: LiFePO4 Prismatic

Cycle life: 4000-15000 cycles

Nominal voltage: 12.8V

Nominal capacity: 100Ah

Energy: 1280Wh

Max. expansion (parallel & series): 4P4S

Internal resistance: ≤40mΩ

Certifications: FCC, CE, RoHS, BattG2, WEEE, PackagingG, UN38.3

Max. Continuous Output Power: 1280W

BMS: 100A

Max. continuous charging current: 100A

Max. continuous discharge current: 100A

Max. discharge current 5 seconds: 300A

Max. thrust for trolling motor: 70 lbs

Charging voltage: 14.4V ± 0.2V

Recommended charging current: 20A (0.2C)

Charging temperature: 0°C - 50°C / 32°F - 122°F

Discharge temperature: -20°C - 60°C / -4°F - 140°F

Storage temperature: -10°C - 50°C / 14°F - 122°F

Resume charging
Temperature below LTCP: 5°C (battery temperature)

Connection terminals: M8 screws

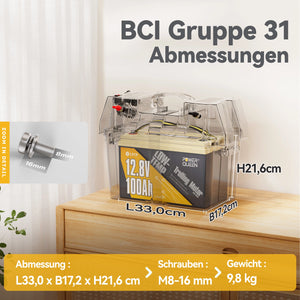

Size: L33.0 x W17.2 x H21.6 cm

Housing material: ABS (flame-retardant plastic)

Protection class: IP65

Carefree payment

Easy return and exchange

Unsatisfied? We offer a 30-day smooth return and exchange policy.

Shipping within 24 hours.

We process your shipments daily from Monday to Friday (except special orders).
Delivery time: 2-4 Working days within Germany and 3-7 Working days within the EU via DPD/UPS.

Want to shop together? Check the box and add it to your cart!

Select this product

Power Queen Mppt 12/24V 30A Solar loader with Bluetooth module
€108,99 €159,99

Default Title
Default Title
Select this product

Power Queen 2000W inverter 12V DC to 220V/230V/240V AC pure sinus wave
€217,99 €239,99

Default Title
Default Title
Select this product

Power Queen 14.6V 20A LIFEPO4 charger for 12V LIFEPO4 battery
€99,99 €109,99

Default Title
Default Title

Advanced batteries for electric motors
The new BMS has a maximum 1-second discharge current of up to 500A for 12V trolling motors with a thrust of 30-70 lbs and is also ideal for powering electronic fishing devices such as fish finders, GPS devices and solar systems.
Automatic shutdown below 0 °C
The improved BMS with low-temperature sensor automatically interrupts charging when the cell temperature drops below 0°C. As soon as the cell temperature rises above 5°C, the BMS restarts charging, protecting the battery from cold damage.

Advanced batteries for electric motors

The new BMS has a maximum 1-second discharge current of up to 500A for 12V trolling motors with a thrust of 30-70 lbs and is also ideal for powering electronic fishing devices such as fish finders, GPS devices and solar systems.

Automatic shutdown below 0 °C

The improved BMS with low-temperature sensor automatically interrupts charging when the cell temperature drops below 0°C. As soon as the cell temperature rises above 5°C, the BMS restarts charging, protecting the battery from cold damage.

1 / 2

Enjoy fishing anytime, anywhere!

The design is moisture and salt spray resistant to prevent corrosion of circuit boards.

The excellent shock resistance and automatic recovery function after overcurrent protection ensure a safe and uninterrupted power supply for your trolling motor on the water.

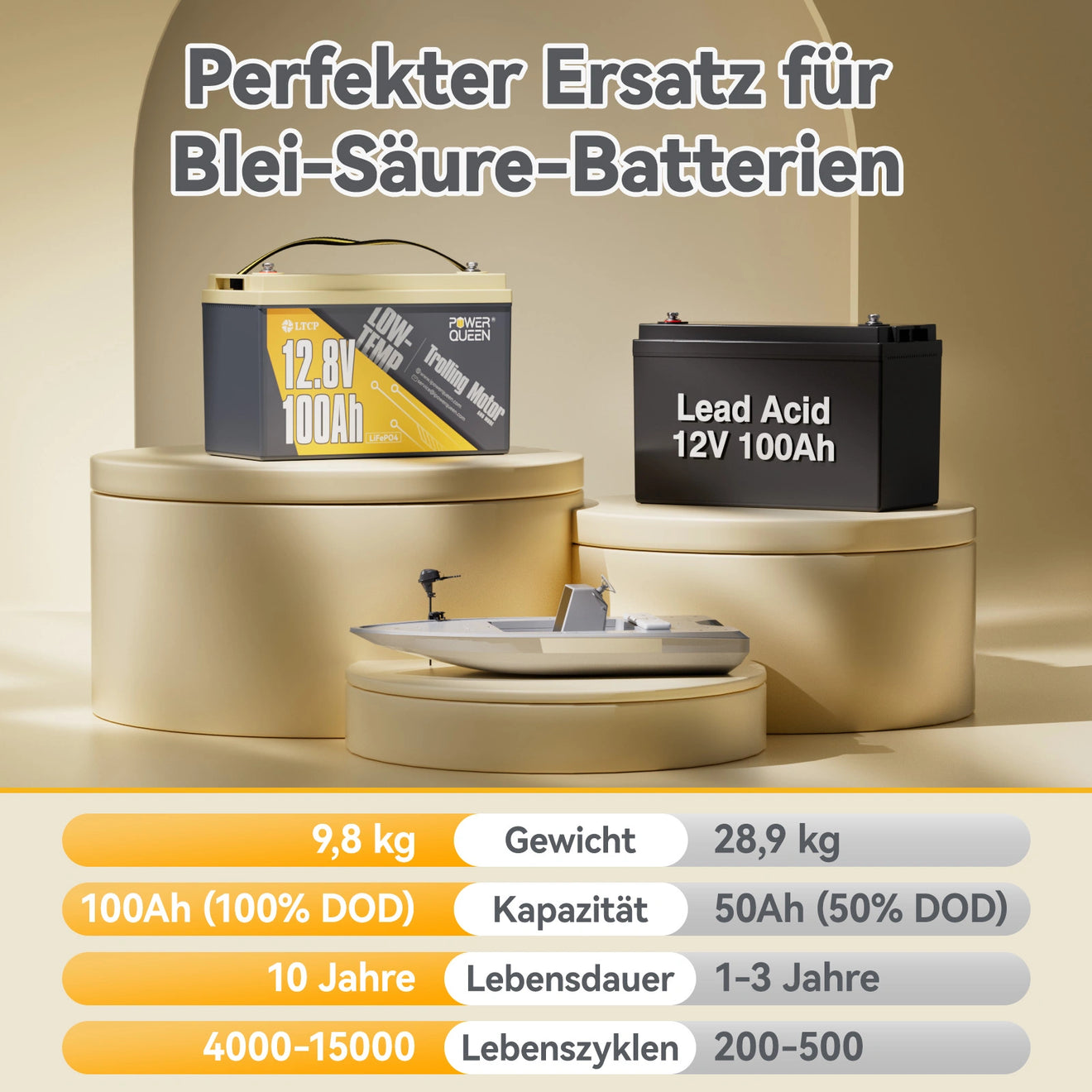

Deep cycle battery with long life

High-quality Class A battery cells with a 5-year warranty.

Protection against overcharging, over-discharging, overcurrent, overtemperature, low temperatures and short circuit.

Over 10 years lifetime and 4000–15000 cycles.

Low weight & 4P4S configurations

The 12V 100Ah LiFePO4 low-temperature battery weighs only approximately 9.8 kg, making it a lightweight option for building a 51.2V 400Ah battery system with 4 parallel and 4 serial connections. It is commonly used in solar systems, RVs, and outdoor activities.

Frequently asked questions:

Can this battery be used to start an outboard engine ?

No. If you are using it for a fishing boat, it is only suitable for a trolling motor and not an outboard motor.

I can use this battery as a car start battery or golf car battery ?

NO. Note: This battery is NOT suitable as a starter battery, golf cart battery, or for heavy-duty applications such as water pumps, car lifts, elevators, vacuum cleaners, or four-wheel drive lawn mowers. More information about the Power Queen: service.de@ipowerqueen.com

Can this battery be used at low temperatures in motorhomes in the Nordic countries ?

Absolutely! It's suitable not only for trolling motors, but also for RVs and homes in low temperatures.

What is meant by the automatic restoration function of the overflow protection ?

If the current in a circuit becomes too high, the battery triggers an overcurrent protection mechanism. Once the current returns to normal, the overcurrent protection is automatically canceled and the battery restores power. This low-temperature battery can continuously provide a stable and reliable power supply for devices.

What should be observed after receipt of the delivery ?

Upon receipt of the battery, please note that it will have a low state of charge (SOC) due to transportation and storage. To ensure optimal performance, we recommend charging the battery quickly to avoid complete discharge. If you will not be using the battery for an extended period of time, we recommend charging it to a SOC of 30% to 50% and performing maintenance every three months. This will help maintain battery performance and stability.

How long can a 100AH LIFEPO4 battery operate a drag engine ?

The runtime of your trolling motor depends on the ampere-hour (Ah) capacity of your battery and the motor's power consumption. Follow this simple formula:
Running time (hours) = battery capacity (Ah) / motor power consumption (A)

Example:
Your trolling motor consumes 54A at full throttle.
They have a 100Ah battery.
To calculate the runtime:
Runtime = battery capacity / power consumption
= 100Ah / 54A = 1.85 hours = 1 hour and 51 minutes

The 100Ah battery would therefore run the 54A motor for about 1 hour and 51 minutes at full speed.
To calculate the running time at low speed:
Suppose the motor consumes 10A at half speed.
Runtime = battery capacity / power consumption
= 100Ah / 10A = 10 hours

You can mount the battery upside down ?

We recommend using the Power Queen 12V 100Ah Low Temp LiFePO4 battery upright with the terminals facing up. The back and top should not be facing down.
