Power Queen 24V 100AH LIFEPO4 Battery, built -in 100a BMS

Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

8

Max. Lastleistung: 2560W Nutzbare Energie: 2560Wh Max. Kontinuierlicher Lade- Entladestrom: 100A

Power Queen 25,6V 100Ah LiFePO4 Batterie

+8

Discount -20%

Product shape

4,000–15,000 cycles for a 10-year lifespan. 13x more cycles and 1/4 the cost of lead-acid batteries.

High-quality Class A battery cells with a 5-year warranty.

Supports up to 4P2S configurations, max. 20480Wh power expansion.

Intelligent BMS with multiple protection functions for safe operation.

Saving of installation space and wiring costs (1/6 lighter and 1/2 smaller than 4 lead batteries 12V 100Ah (2P2S)).

Number Free collection in Our business (e) 1 piece (saving € 114)

1 piece (saving € 114)

1 piece+29.2V 20A charger

2 pieces (€ 461.33 / piece)

4 pieces (€ 456.67 / piece)

1 piece (0% VAT. DE/AT)

1 piece (0% VAT. UA)

23 in stock

€465,99 €579,99

0 % MwSt. bei Lieferungen nach Deutschland und Österreich

You hereby confirm that you meet the requirements for sales tax -free delivery in accordance with Section 12 (3) of Germany or 28 Paragraph 62 UStG. Erfahren Sie mehr.

Battery specifications

Cell type: LiFePO4 Prismatic

Cycle life: 4000-15000 cycles

Nominal voltage: 25.6V

Nominal capacity: 100Ah

Energy: 2560Wh

Max. expansion (parallel & series): 4P2S

Internal resistance: ≤40mΩ

Certifications: FCC, CE, RoHS, BattG2, WEEE, VerpackG, UN38.3

Max. Continuous Output Power: 2560W

BMS: 100A

Max. continuous charging current: 100A

Max. continuous discharge current: 100A

Max. discharge current 5 seconds: 280A

Charging voltage: 28.8V ± 0.4V

Recommended charging current: 20A (0.2C)

Charging temperature: 0°C - 50°C / 32°F - 122°F

Discharge temperature: -20°C - 60°C / -4°F - 140°F

Storage temperature: -10°C - 50°C / 14°F - 122°F

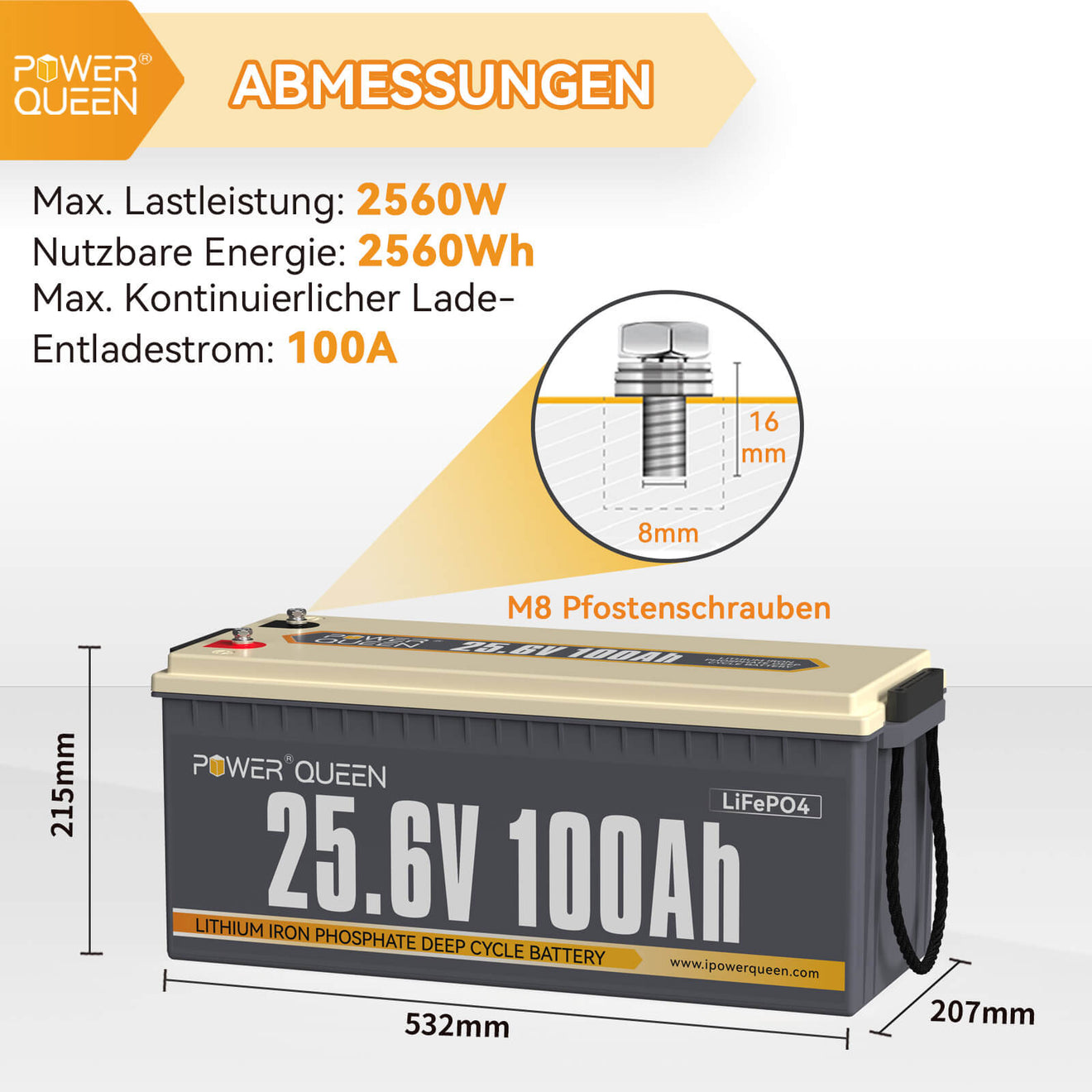

Connection terminals: M8 screws

Weight approx: 19.06 KG

Size: L53.2 x W20.7 x H21.6 cm

Housing material: ABS (flame-retardant plastic)

Protection class: IP65

Carefree payment

Easy return and exchange

Dissatisfied? We offer a hassle-free 30-day Return and exchange.

Shipping within 24 hours.

We process your shipments daily from Monday to Friday (except special orders).
Delivery time: 2-4 Working days within Germany and 3-7 Working days within the EU via DPD/UPS.

Want to shop together? Check the box and add it to your cart!

Select this product

Power Queen Mppt 12/24V 30A Solar loader with Bluetooth module
€108,99 €159,99

Default Title
Default Title
Select this product

Power Queen 500A battery maker with shunt, LCD display
€89,99 €109,99

Default Title
Default Title

LiFePO4 24V 100Ah ≈ AGM 4 x 12V 100Ah (2P2S)

At 100% DOD (depth of discharge), the 1 x Power Queen 24V 100Ah LiFePO4 battery has more usable capacity (2560Wh) than 4 x 12V 100Ah AGM batteries with only 50% DOD (2400Wh).

The 24V 100Ah solar battery weighs approx. 19.06 kg and has a size of 53.2*20.7*21.6 cm, only approx. 1/6 of the weight and 1/2 the size of 4 x 12V 100Ah AGM battery systems.

Power Queen Deep Cycle batteries have a lifespan of 10 years and 4,000 to 15,000 cycles compared to lead-acid batteries with 2 to 5 years and 200 to 500 cycles.

Compact and efficient energy storage
A 24V battery requires less space than several 12V batteries, especially in confined spaces (e.g. in a motorhome or on a boat).
Installation is simplified by using a 24V 100Ah battery and requires 50% less wiring.

Batteries specifically designed for 24V systems can be more efficient than multiple 12V batteries connected together.

The fewer batteries connected in series or parallel, the lower the risk of imbalance and the more consistent the performance.

Compact and efficient energy storage
A 24V battery requires less space than several 12V batteries, especially in confined spaces (e.g. in a motorhome or on a boat).
Installation is simplified by using a 24V 100Ah battery and requires 50% less wiring.

Batteries specifically designed for 24V systems can be more efficient than multiple 12V batteries connected together.

The fewer batteries connected in series or parallel, the lower the risk of imbalance and the more consistent the performance.

Power Queen Innovative lithium technology

Name: Power Queen 24V 100AH LIFEPO4 Battery, built -in 100a BMS
Brand: PQ-DE
SKU: P24V100-100-Basic-8-A160-DE
Price: 465.99 EUR
Availability: InStock

Efficient storage of solar energy and reliable energy supply

Large capacity to meet household electricity needs

CE, RoHS, BattG2 and other certificates for maximum safety.

High-quality batteries can be cost-effective over long periods

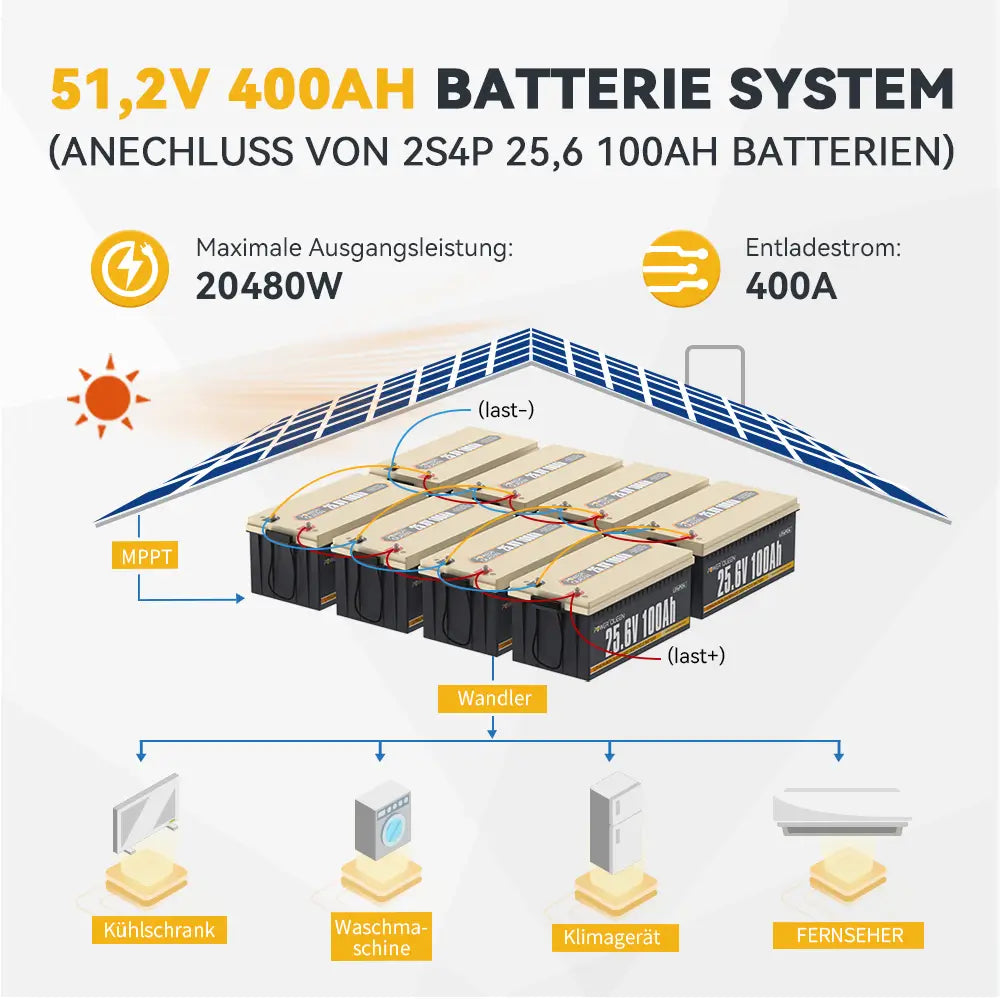

Energy storage solutions max. 20.48 kWh

These 24V 100Ah solar batteries can be connected up to 4 in parallel and 2 in series to increase capacity (100Ah, 200Ah, 300Ah, max. 400Ah) and voltage (25.6V, max. 51.2V). With up to 8 batteries, a 51.2V 400Ah battery system with 20.48kWh of energy can be generated. Ideal for photovoltaic systems with storage, emergency power systems, and mobile homes.

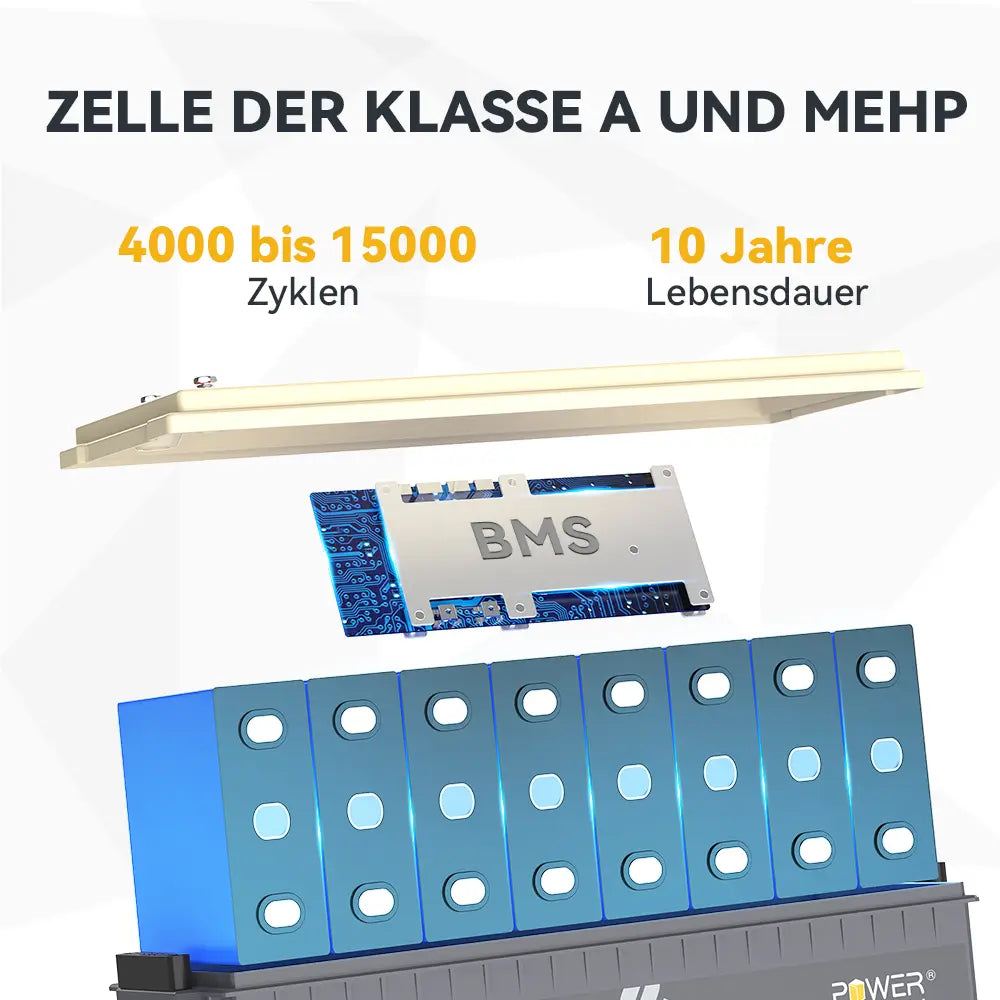

EV-quality battery cells

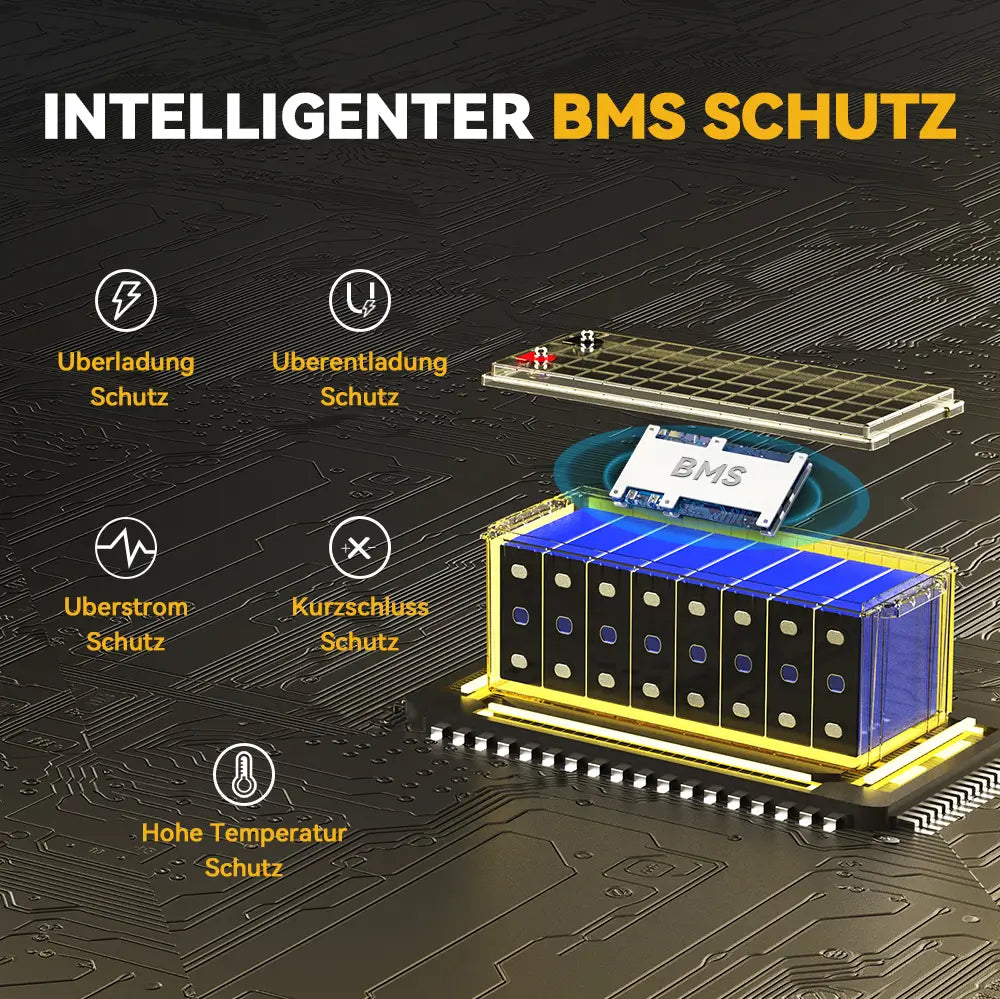

The 24V 100Ah lithium iron phosphate battery consists of eight automotive-grade prismatic cells. It offers high density, stable performance, and safety in daily use. The integrated 100A BMS protects against overcharging, overdischarging, overcurrent, overtemperature, and short circuits.

Frequently asked questions:

Can the battery be mounted on the side ?

For the Power Queen 24V 100Ah LiFePO4 battery, we recommend mounting it upright with the terminals facing up. It's important to ensure the front and top sides are not facing down.

I can use this battery as a car start battery or golf car battery ?

NO. Note: This battery is NOT suitable as a starter battery, golf cart battery, or for heavy-duty applications such as water pumps, car lifts, elevators, vacuum cleaners, or four-wheel drive lawn mowers. More information about the Power Queen: service.de@ipowerqueen.com

Provide withdrawn batteries ?

Economical and sustainable: Discover our tested "like new" batteries!

Our tested used batteries offer the perfect combination of performance and economy. Why pay more when you can get high-quality energy at a fraction of the price?

We regularly update the number of returned batteries. If necessary, please click here: "Like new"-Batteries!

I can switch them into row with other batteries or in parallel ?

NO. Conditions for series and parallel connection: Same brandSame modelWithin 3 months of the date of purchase.

How can I compensate for the batteries in a serial or parallel configuration ?

Use suitable batteries: When assembling the battery pack, select LiFePO4 batteries of the same voltage and capacity (same brand, same model, within 3 months of purchase). This minimizes battery differences and eliminates the need for a balancing regulator.

Manage loading and unloading: Use appropriate chargers and dischargers. Proper management of the charging and discharging process can reduce voltage and capacity differences within the battery group.

Check the batteries regularly: Regularly check the voltage and capacity of each battery in the battery group to ensure they are consistent. If one battery differs significantly from the others, balancing measures may be necessary.

Use a compensator: Installing a LiFePO4 battery balancing regulator can compensate for voltage and capacity differences in series or parallel battery groups. The balancing regulator transfers energy from high-voltage or high-capacity batteries to low-voltage or low-capacity batteries to ensure consistent performance and longevity across the entire battery group.

Both the 12V 200AH Plus and the 24V 100Ah batteries have a maximum output power of 2560W. Which should I choose ?

1. The 24V 100Ah is suitable for applications with higher voltage and lower capacity (max. 2 in series and 4 in parallel).

The 12V 200Ah Plus is suitable for applications with lower voltage and higher capacity (max. 4 in series and 4 in parallel).

2. A 24-volt system uses less power for the same output than a 12-volt system, resulting in less heat and energy waste, making 24-volt systems more efficient.

I can charge Lifepo4 batteries with solar modules ?

Yes, you can charge LiFePO4 batteries with solar panels. Here are three reliable charging options:

1. Use of solar modules
The Power Queen 24V 100Ah battery can be fully charged in one day with 800W solar panels (assuming 4.5 hours of effective sunshine per day). With ≤800W solar panels, it may take more than a day to fully charge the battery, as the duration and intensity of the light have a significant impact on charging efficiency.

2. LiFePO4 Smart Chargers
For charging a 24V battery, it is recommended to use a 29.2V charger to use.
Recommended charging voltage: 28.4V - 29.2V.
Recommended charging current: 20A (0.2C) - the battery is charged to 100% capacity in about 5 hours.

3. Generator/alternator
If the alternator or generator supports DC output, a DC charger is required to connect the battery to the generator. If the alternator or generator supports AC output, please add a suitable charger according to our recommendations to connect the battery and generator.
Recommended charging voltage: 28.4V - 29.2V.
Recommended charging current: 20A (0.2C) - the battery is charged to 100% capacity in about 5 hours.
